Prototype Steam Engine Saddle Tank Attachment
 Moderated by: .
New Topic Reply Printer Friendly
 Rating:  Rating
AuthorPost
 Posted: Thu Jul 22nd, 2010 12:11 am
  PMQuoteReply
1st Post
Dwayne
Registered


Joined: Mon Mar 19th, 2007
Location: Oklahoma City, Oklahoma USA
Posts: 1059
Status:
Offline
How are they attached to a prototype steam engine?

I've viewed hundreds of my saved photos and haven't been able to determine how they attach. Any help with photos, drawings or a really good description will be greatly appreciated. :)



____________________

"If the women don't find you handsome they should at least find you handy".
Back To Top

 Posted: Thu Jul 22nd, 2010 04:16 pm
  PMQuoteReply
2nd Post
W C Greene
Moderator


Joined: Fri May 4th, 2007
Location: Royse City, Texas USA
Posts: 8202
Status:
Offline
DW-saddle tanks are attached to boilers with brackets in different configurations. They appear to be bolted to the tank and then to the boiler...I don't know if the bolts go into the boiler or just into the lagging...that may not be the best way to mount one, however.

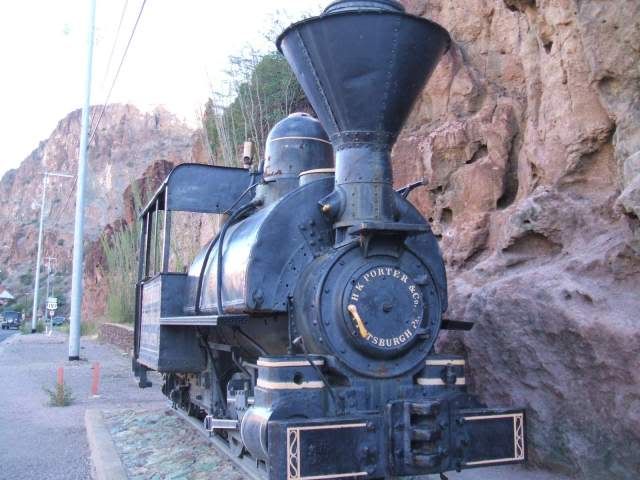

Here's a photo of 20" gauge Copperhead out in Clifton, AZ-shows an "L" bracket behind the smokestack that holds the tank on. This one looks like it is riveted on to the smokebox. There are other brackets under the tank attaching to the boiler, but my photos are a little fuzzy of them. I hope you can get an idea from this shot.

Looking at this photo makes me want to fire up the motor home and get out there again. Clifton is only about 40 miles from Mogollon and all that is about a million miles away from Dallas!

                     Woodie



____________________
It doesn't matter if you win or lose, its' how you rig the game.
Back To Top

 Posted: Thu Jul 22nd, 2010 05:26 pm
  PMQuoteReply
3rd Post
Dwayne
Registered


Joined: Mon Mar 19th, 2007
Location: Oklahoma City, Oklahoma USA
Posts: 1059
Status:
Offline
Thanks Woodie. Sweet photo.



____________________

"If the women don't find you handsome they should at least find you handy".
Back To Top

 Posted: Wed Jul 6th, 2011 03:00 am
  PMQuoteReply
4th Post
CMmodeler
Registered


Joined: Tue May 10th, 2011
Location: Loveland, Colorado USA
Posts: 6
Status:
Offline
Here is the cylinder saddle on on a 1890's era 2-8-0 in a museum in Pennsylvania.  I have washed out this picture so that the detail comes out better.  The saddle is definately bolted to the smokebox.



Last edited on Wed Jul 6th, 2011 03:01 am by CMmodeler



____________________
Darrel Ellis
Yes, I do still play with trains.
Back To Top

 Posted: Wed Jul 6th, 2011 01:31 pm
  PMQuoteReply
5th Post
Herb Kephart
Moderator


Joined: Thu Jul 19th, 2007
Location: Glen Mills, Pennsylvania USA
Posts: 6017
Status:
Offline
Nothing of any consequence is attached to the lagging, which is what looks like the outside of the boiler. The lagging is only a sheetmetal cover, to hold the insulation--asbestos blocks, in the bad old days-- to the boiler. The smokebox is not insulated, and that is why you see rivets on the smokebox, but not on the boiler The cylinders are insulated also.

Not part of Dwayne's question, but in movies or videos of steam locos in action, steam can be seen escaping form the bottom of the cylinders when the loco starts moving, then dissapears. The reason for this, is that when the loco is standing, the cylinders cool down, and any residual steam condenses back into water. Water is incompressible, and to avoid having water trapped in the small area between the piston and the end of the cylinder when the loco starts to move, small valves in the bottom ends of the cylinder are opened (from the cab) to blow any water out. If enough water were trapped in the cylinder, and the loco started quickly enough--or the wheels spun (same thing) the water can, and has on some occasions, push the end right off the cylinder--a ring of large bolts not withstanding.

Just part of choo-choo 101


Herb




____________________
Fix it again, Mr Gates--it still works!"
Back To Top

 Posted: Sun Jul 17th, 2011 11:52 pm
  PMQuoteReply
6th Post
elminero67
Registered


Joined: Sun Dec 27th, 2009
Location:
Posts: 911
Status:
Offline

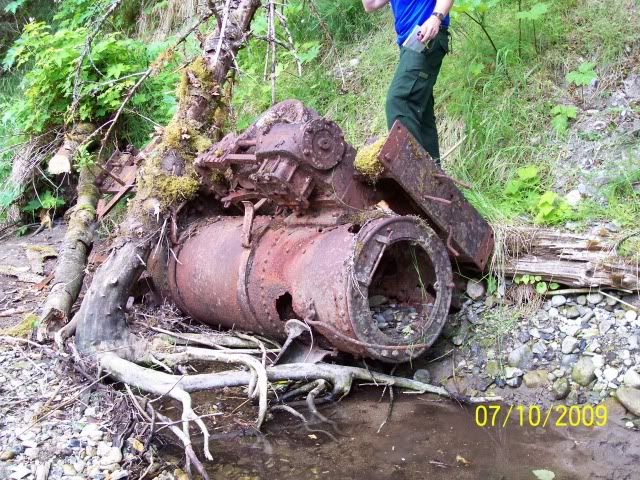

Im not sure if this is what you were looking for, but it looks like the side supports/mounts for the saddle tank on what is left of this narrow gauge Porter are attached to the heavy straps (i'm sure there is a better term) that go around the outside of the boiler.




____________________

Back To Top
