So, what scale is it ?
No 3's design was strongly influenced by ET&WNC's #16, an 8 ton Plymouth but it is NOT A MODEL of that unit or any other.
Indeed, No 3 is not a model at all. It is an experiment into how small a real industrial locomotive can be. There will be no "scale" details. No scale grab-irons, no scale walkways. No fake louvers or pipes. Everything on it will be there because it's needed and "scaled" to be used by full size people.
Simply put, it will be a quarter ton, 7 1/2in (narrow) gauge, gas mechanical locomotive. Period!
This little critter is to railroading what ultralight planes are to general avation.
PS: Go back to bottom of page 9, to see drawing. Bob
Last edited on Tue Jun 26th, 2012 12:37 am by UNCLE BOB
____________________
UNCLE BOB
Modeling the EXPERIENCE of 2ft narrow gauge by REPLICATING the equipment.
(The greatest bane to creativity is preconception)
|
|
|
UNCLE BOB
Registered
|
Work continues. The cab is all welded, ready for sheet metal skin.
The design is evolving as we build. This is the latest version. Bob
____________________
UNCLE BOB
Modeling the EXPERIENCE of 2ft narrow gauge by REPLICATING the equipment.
(The greatest bane to creativity is preconception)
|
|
|
UNCLE BOB
Registered
|
NO, THIS IS NOT A DOUBLE POST!
The design keeps evolving as we build. It is hard not to think "model". We really don't need a grill on the nose; there will be a round fan (electric) on the hood to draw air up through the open bottom past the motor. "No grill" is stronger, easier and provides space for the front light.
I've figured a way to move the exhaust stack nearer the motor and added brace panels to each frame corner.
Bob
Last edited on Sat Jul 7th, 2012 03:52 am by UNCLE BOB
____________________
UNCLE BOB
Modeling the EXPERIENCE of 2ft narrow gauge by REPLICATING the equipment.
(The greatest bane to creativity is preconception)
|
|
|
W C Greene
Moderator
|
Bob-that's gonna be UPTOWN SATURDAY NIGHT! Cool as home made ........! I love it.
Woodrow
____________________
It doesn't matter if you win or lose, its' how you rig the game.
|
|
|
UNCLE BOB
Registered
|
Thanks a bunch, Woodie!
In the US, 7 1/2 (and 7 1/4) seem to be pretty well all "scale". Either 1/8th or there abouts, full size, for standard gauge or 1/5th, give or take, for narrow gauge.
In Europe and especially in GB there seems to be (based on what I see on You Tube) a LOT of "micro-narrow gauge" (It's 7 1/4 over there, not 7 1/2). These, like mine, are actual 1 to1 trains - but, indeed, little ones. Look up "Moors Valley Railway" for a good example.
I think we'll all agree that narrow gauge is pretty cool. We don't usually think of the prototoype being less than around 15 inches of gauge.
But it CAN be. It can be half that.  xxxxxxxxxxxxxxxxxxxxxxxxBobxxxxxxxxx
Last edited on Sat Jul 7th, 2012 11:26 am by UNCLE BOB
____________________
UNCLE BOB
Modeling the EXPERIENCE of 2ft narrow gauge by REPLICATING the equipment.
(The greatest bane to creativity is preconception)
|
|
|
Herb Kephart
Moderator
|
Ride on Z scale, Bob?
Herb
____________________
Fix it again, Mr Gates--it still works!"
|
|
|
UNCLE BOB
Registered
|
Don't be bitter, Herb!

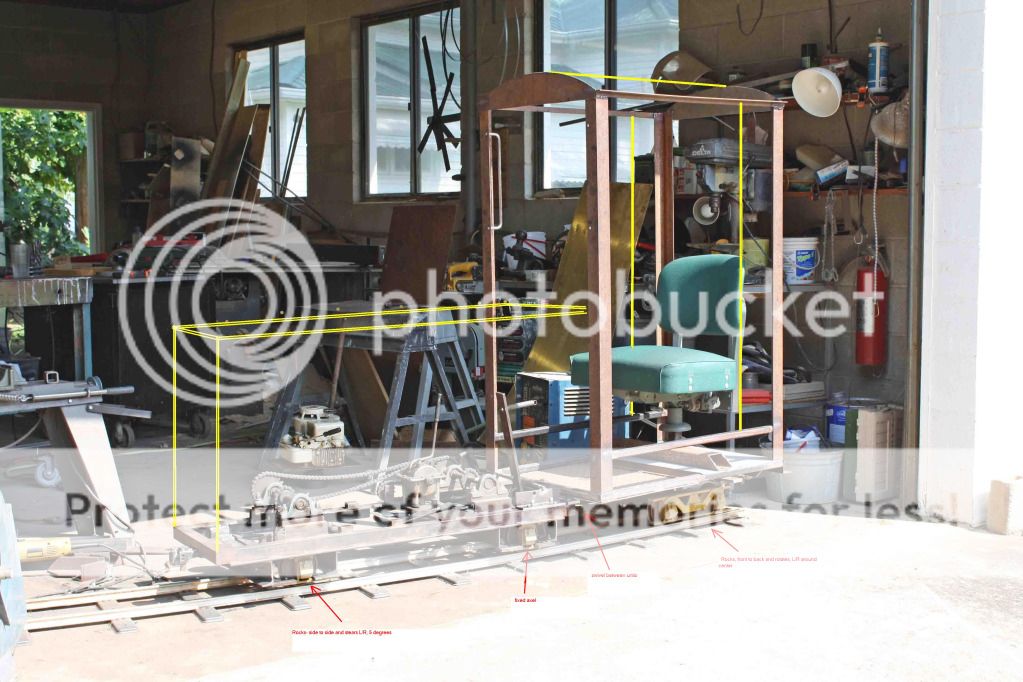

Did our first roll test today. Yellow lines indicate planed construction.
The motor had not been re-mounted in this view (sitting on floor in background)
xxxxxxxxxxxxxxx Bob xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Last edited on Sat Jul 7th, 2012 10:57 pm by UNCLE BOB
____________________
UNCLE BOB
Modeling the EXPERIENCE of 2ft narrow gauge by REPLICATING the equipment.
(The greatest bane to creativity is preconception)
|
|
|
| Posted: Tue Jul 10th, 2012 12:38 am |
|
98th Post |
| Posted: Tue Jul 10th, 2012 12:47 am |
|
99th Post |
W C Greene
Moderator
|
Mmmmm..send a video!
Woodrow
____________________
It doesn't matter if you win or lose, its' how you rig the game.
|
|
|
UNCLE BOB
Registered
|
Wish I had a video camera, Woodie.
This project is designed from the inside out. And it keeps evolving as we go. this may well be the final design. Tomorrow I plan to cut sheet metal for the hood section.
