My HO Brass Rebuilding
 Moderated by: Herb Kephart Page:    1  2  Next Page Last Page
New Topic Reply Printer Friendly
 Rating:  Rating
AuthorPost
 Posted: Sun Jan 29th, 2006 05:16 pm
  PMQuoteReply
1st Post
steammodeler
Registered


Joined: Mon Jan 23rd, 2006
Location: Tampa, Florida USA
Posts: 106
Status:
Offline
I know this is more of a scratchbuild/kitbash topic but because it is HO, I thought I might share with the HO crowd a little project I have been working on. Although not complete yet, I would like to maybe get a thread going on it, and hope to get others ideas about using inexpensive drivelines for there own creations. I used pics from a Mason Bogie for my guidelines but, without some modifications that I was not really willing to do at the time, this is what I am making. I really don't want to be a rivet counter so I just went for it.

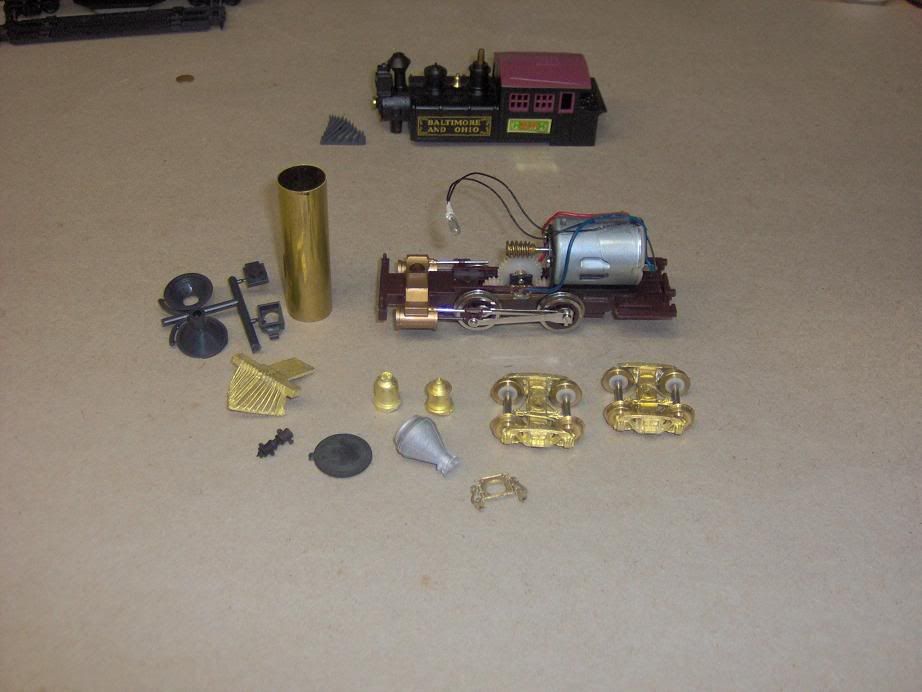

I collected a few parts.





Made a layout on the computer, by scaling down a picture of a Mason Bogie and glued it to a piece of brass sheet and cut it out on a commercial die saw, but a small power jig saw would work fine.

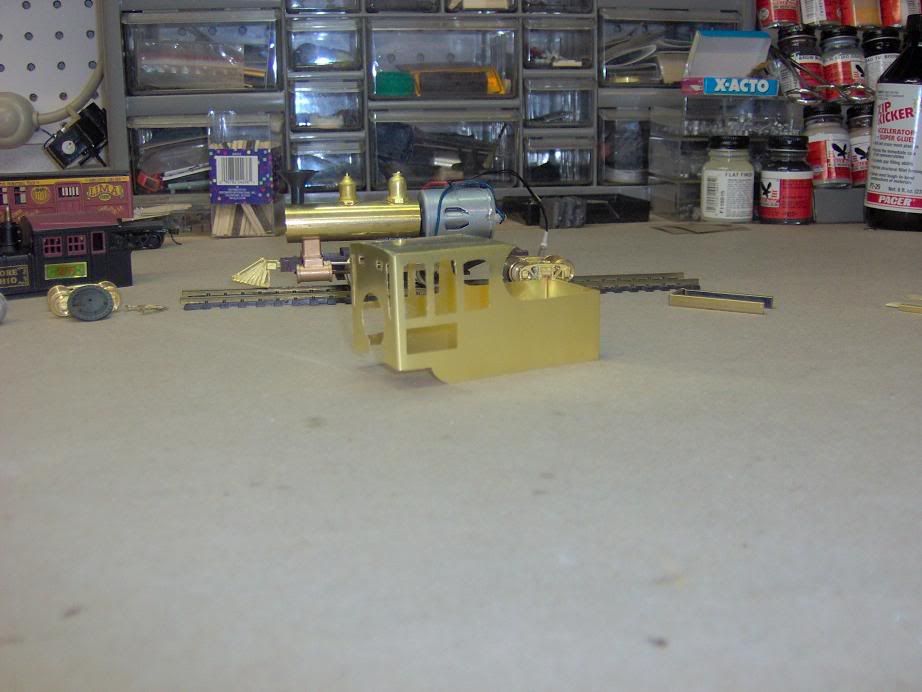

Made a few bends, and did a little soldering....hmmm looks like a cab comming together!

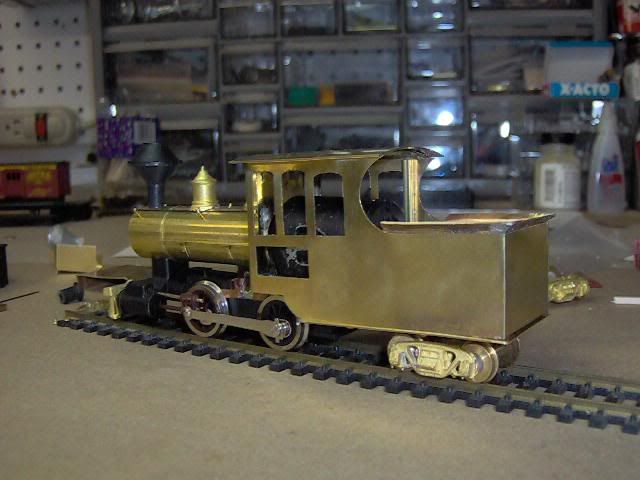

A test fit and test run, after a few minor adjustments, and ended up moving the motor back about a quarter inch for a better boiler/cab fit and better gear mesh to the worm than the factory location.

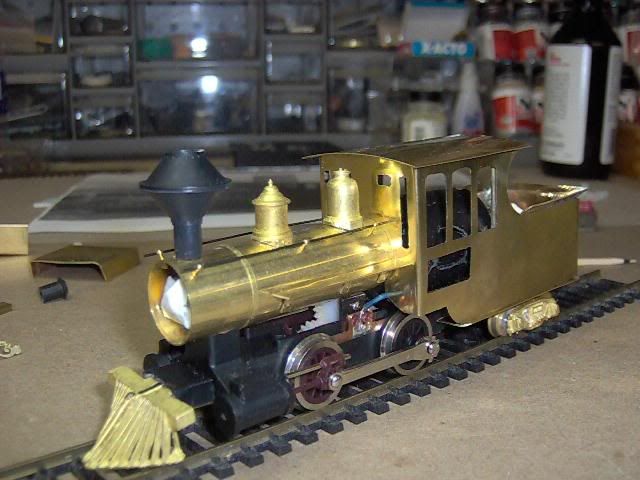

So this is about where the project stands right now, I have to add some windows, a light, boiler cover, bell, and a slew of other little details I have set aside. I will be posting a few new pic's on my little brass retrofit as I near completion. Working with brass has taught me alot and I sure would like to hear of any others brass work experience and tips, as I will plan to do more brass building in the future, and need all the help I can get.

Well my Mason Bogie project has neared completion, and I thought I would share a couple of pictures of it finished.



 Out for a test ride...whoo Hoo!!!



Wish I had a better camera, the fine details just are not evident.

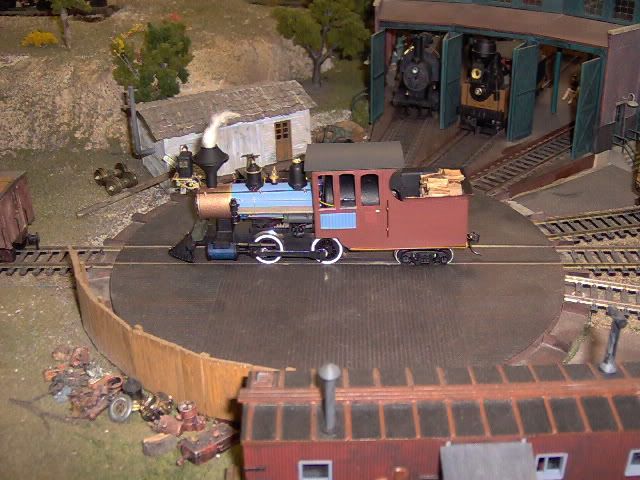

Headed back to the roundhouse, we will let her cool down a little until called upon for a route. It's been a fun build, and I'm sure I can find a few more odds and ends to finish it up in time. Thanks for letting me share a little side project on FreeRails. Well back to the drawing board, got a few more projects under way!

Last edited on Wed Feb 8th, 2006 07:32 pm by steammodeler



____________________
James

Hurricane Pass Mining & Timber R.R. Co.
Back To Top

 Posted: Sun Jan 29th, 2006 05:27 pm
  PMQuoteReply
2nd Post
LiveSteamer
Registered


Joined: Thu Jan 26th, 2006
Location: Portage, Pennsylvania USA
Posts: 1218
Status:
Offline
Looks Great Jim.



____________________
Matthew Miller

http://nscyclopedia.weebly.com/
Norfolk Southern Cyclopedia

http://independentlivesteamers.weebly.com
Independent Live Steamers
Back To Top

 Posted: Sun Jan 29th, 2006 05:54 pm
  PMQuoteReply
3rd Post
Dave D
Moderator


Joined: Mon Jan 23rd, 2006
Location: Green Bay, Wisconsin USA
Posts: 3308
Status:
Offline
Jim..Thanks so much for posting this......saved me the trouble....Love it great job!:dude:



____________________
My father worked in profanity the way other artists might work in oils or clay. It was his true medium, a master.
Back To Top

 Posted: Sun Jan 29th, 2006 06:04 pm
  PMQuoteReply
4th Post
Tileguy
Registered


Joined: Tue Jan 24th, 2006
Location: Warba, Minnesota USA
Posts: 1746
Status:
Offline
Fantastic Jim, i think i said that before. All the years ive been in this hobby i have yet to try something like this................you got some brass  there buddy LOL

It will be nice to see her running :)



____________________
Todd
There once was a man from Nantucket ;)
Back To Top

 Posted: Sun Jan 29th, 2006 11:29 pm
  PMQuoteReply
5th Post
CopperValleySouthern
Registered


Joined: Sat Jan 28th, 2006
Location: Phoenix, Arizona USA
Posts: 249
Status:
Offline
Hey Jim,

The model is looking excellent. Can't wait to start my own brass project, this pumps me up even more!!! So are you planning on painting and decaling it???

Chris



____________________
Chris
Back To Top

 Posted: Mon Jan 30th, 2006 04:27 am
  PMQuoteReply
6th Post
jpguest
Guest


Joined:
Location:
Posts:
Status:
Offline
That is so sweet Jim... I can't wait to see it painted and weathered, thanks for sharing :)

Back To Top

 Posted: Fri Mar 24th, 2006 11:11 pm
  PMQuoteReply
7th Post
Werner
Registered


Joined: Tue Jan 31st, 2006
Location: North Tonawanda, New York USA
Posts: 495
Status:
Offline
Must have totally overlooked your fine project :bang:

That's definitely a 3 :moose::moose::moose:job!

Just a question: What is the original loco you started with?



____________________
Chief Engineer and CEO of the Crossroads, Pinecove & Rockhaven RR
--- nothing for rivetcounters ;)
Back To Top

 Posted: Sat Mar 25th, 2006 12:46 am
  PMQuoteReply
8th Post
Paladin
Moderator


Joined: Tue Jan 24th, 2006
Location: Berwick, Australia
Posts: 2425
Status:
Offline
James you have excelled again. that is a little gem congratulations.

Paladin



____________________
Don McL
Back To Top

 Posted: Tue Mar 28th, 2006 04:58 pm
  PMQuoteReply
9th Post
ole cowboy
Registered


Joined: Sat Jan 28th, 2006
Location: New Brunswick Canada
Posts: 23
Status:
Offline
That's one neat little machine, James....Super job.......A little weathering in the works?:cb::cb:

Back To Top

 Posted: Tue Mar 28th, 2006 10:17 pm
  PMQuoteReply
10th Post
steammodeler
Registered


Joined: Mon Jan 23rd, 2006
Location: Tampa, Florida USA
Posts: 106
Status:
Offline
Thanks for the kind words on this one. Todd, the drive line was an inexpensive Life Like chassis that I ended up doing more modifications on than expected. I had to wire the back trucks for power as the drivers couldn't provide a good uniform feed to the motor for smooth operation. I perfer the old MDC kits for my drive lines but the rising costs of the old kits on ebay has me looking for cheaper options. I had the loco out on the layout today for a little while, and while it now runs well, I probally won't be using it much as a day to day runner. It will reside in the roundhouse for now and spend its time as a rung on my ladder as I learned alot from building this and will use many of the things I learned on my next ones in the future. Beware though, playing around with brass is addictive for sure!



____________________
James

Hurricane Pass Mining & Timber R.R. Co.
Back To Top
