- R.C. Mobile Crane - In 1:43 Scale -
 Moderated by: W C Greene Page:  First Page Previous Page  1  2  3  Next Page Last Page
New Topic Reply Printer Friendly
 Rating:  Rating
AuthorPost
 Posted: Fri Dec 9th, 2016 12:57 am
  PMQuoteReply
11th Post
Cor V
Registered


Joined: Wed Mar 11th, 2015
Location: Netherlands
Posts: 279
Status:
Offline
i have a potentional victema nice crane from speccast
you can find loads off small motors for winches, or use a servo for it
Cor



____________________
Cor
Back To Top

 Posted: Sat Dec 10th, 2016 01:10 am
  PMQuoteReply
12th Post
bobquincy
Registered


Joined: Sun Jan 27th, 2013
Location: North Carolina USA
Posts: 244
Status:
Offline
This place
http://www.gizmoszone.com/shopping/agora.cgi?product=Gearmotor&user4=68series;ppinc=1g
has some small motors with a lot of gear reduction, down to 25 rpm and even one at 14 rpm
http://www.gizmoszone.com/shopping/agora.cgi?product=Gearmotor&user4=68series;ppinc=1g



____________________
Monorail modelers have a one track mind.
Back To Top

 Posted: Sat Dec 10th, 2016 01:25 am
  PMQuoteReply
13th Post
Cor V
Registered


Joined: Wed Mar 11th, 2015
Location: Netherlands
Posts: 279
Status:
Offline
http://www.ebay.com/itm/DC-6V-30RPM-Micro-Speed-Reduction-Gear-Motor-with-Metal-Gearbox-Wheel-Shaft-/111742307756?hash=item1a045c4dac:g:840AAOSwI-BWOXz2
Cor



____________________
Cor
Back To Top

 Posted: Sat Dec 10th, 2016 09:36 pm
  PMQuoteReply
14th Post
dan3192
Registered


Joined: Thu Oct 14th, 2010
Location: Connecticut USA
Posts: 191
Status:
Offline
https://www.pololu.com/category/51/pololu-metal-gearmotors

https://www.pololu.com/product/989

Dan

Last edited on Sat Dec 10th, 2016 09:45 pm by dan3192

Back To Top

 Posted: Sat Jan 14th, 2017 10:49 pm
  PMQuoteReply
15th Post
W C Greene
Moderator


Joined: Fri May 4th, 2007
Location: Royse City, Texas USA
Posts: 7760
Status:
Offline
OK then, let's see some more operating cranes, etc. How about an operating crane (Brownhoist) that not only works but is capable of running by itself from job to job. I have seen such cranes do "double duty" as switch engines-in a pinch I suppose. Might make for some interesting operations on the layout!

Woodie



____________________
It doesn't matter if you win or lose, its' how you rig the game.
Back To Top

 Posted: Sun Mar 19th, 2017 03:50 pm
  PMQuoteReply
16th Post
Giles
Registered


Joined: Thu Dec 29th, 2011
Location: United Kingdom
Posts: 90
Status:
Offline
The running gears were the same type of gear motor (Polulu have better starting characteristics than the cheap eBay ones) driving through a pair of plastic bevel gears to the back axle.

I finally built myself a four-joystick transmitter to drive this thing, based around a DelTang TX. It now handles very well and reliably.

http://www.youtube.com/watch?v=dtmj2a92sJw



____________________
Giles

The Loop. 0-16.5
http://www.youtube.com/watch?v=1FB2lTF4t4M&feature=plcp&context=C3775db8UDOEgsToPDskI_j5g3O_927OWTefW3AUU-
The End of The Line
http://www.youtube.com/watch?v=8SEo2v9v82Q
Back To Top

 Posted: Mon Mar 20th, 2017 04:43 am
  PMQuoteReply
17th Post
Rod Hutchinson
Registered


Joined: Fri May 8th, 2009
Location: Mooroolbark, Australia
Posts: 368
Status:
Offline
Giles wrote: I finally built myself a four-joystick transmitter to drive this thing, based around a DelTang TX.
Hi Giles.  Can you tell me a little bit about how you built the joystick transmitter using a Deltang TX?



____________________
Rod Hutchinson
Mooroolbark, Australia
Back To Top

 Posted: Mon Mar 20th, 2017 05:43 am
  PMQuoteReply
18th Post
Tony Walsham
Registered


Joined: Tue Apr 8th, 2014
Location: Casino NSW, Australia
Posts: 245
Status:
Offline
Hi Rod. Given that a Deltang Tx module is more or less the same as any DSM2 stick radio innards, you would probably be better off simply buying any DSM2 stick radio.
The most difficult thing to build are the gimbals that connect the sticks to the controlling pots.



____________________
Best wishes,
Tony Walsham.
Owner of Remote Control Systems
Back To Top

 Posted: Mon Mar 20th, 2017 10:45 am
  PMQuoteReply
19th Post
Rod Hutchinson
Registered


Joined: Fri May 8th, 2009
Location: Mooroolbark, Australia
Posts: 368
Status:
Offline
Tony Walsham wrote: Hi Rod. Given that a Deltang Tx module is more or less the same as any DSM2 stick radio innards, you would probably be better off simply buying any DSM2 stick radio.
The most difficult thing to build are the gimbals that connect the sticks to the controlling pots.

Tony, I am only familiar with DT tx / rx.  Some DT rx models can be controlled useing a DX3 tx.  I am going to put R/C into some 1:87 vehicles.

Can you tell me anything about DX3 txs'?
How would I choose a DX3 transmitter over a DSM2 stick transmitter?

Last edited on Mon Mar 20th, 2017 10:46 am by Rod Hutchinson



____________________
Rod Hutchinson
Mooroolbark, Australia
Back To Top

 Posted: Mon Mar 20th, 2017 01:10 pm
  PMQuoteReply
20th Post
Giles
Registered


Joined: Thu Dec 29th, 2011
Location: United Kingdom
Posts: 90
Status:
Offline
Hi Rod,



The transmitter is based on a standard Deltang 6 channel (I think!) job, which Andy at Micron had built up for me as a temporary TX, as he was going to build a special four-stick (plus one knob) one for me. This temporary TX was simply a series of knobs, which was exceedingly difficult to 'drive' without causing the crane damage through over-runs.



However, Andy found that (all) the joysticks he planned on using were not accurate enough and wouldn't do the job - so he regretfully declined to take it further.



I, with the innocence of ignorance, and the drive of necessity, had to make it work.



The solution was to use 'Thumb joysticks' (which Andy was intending) which used as they come didn't 'zero', and things were in motion when they shouldn't be. I solved that by the expediency of (channel by channel) removing the pot from the side of the assembly, filing off all the locating lugs, putting the pot back on, and rotating it until it 'zeroed' and all motion stopped, and glueing it back on in that position.

Crude, but eventually effective....

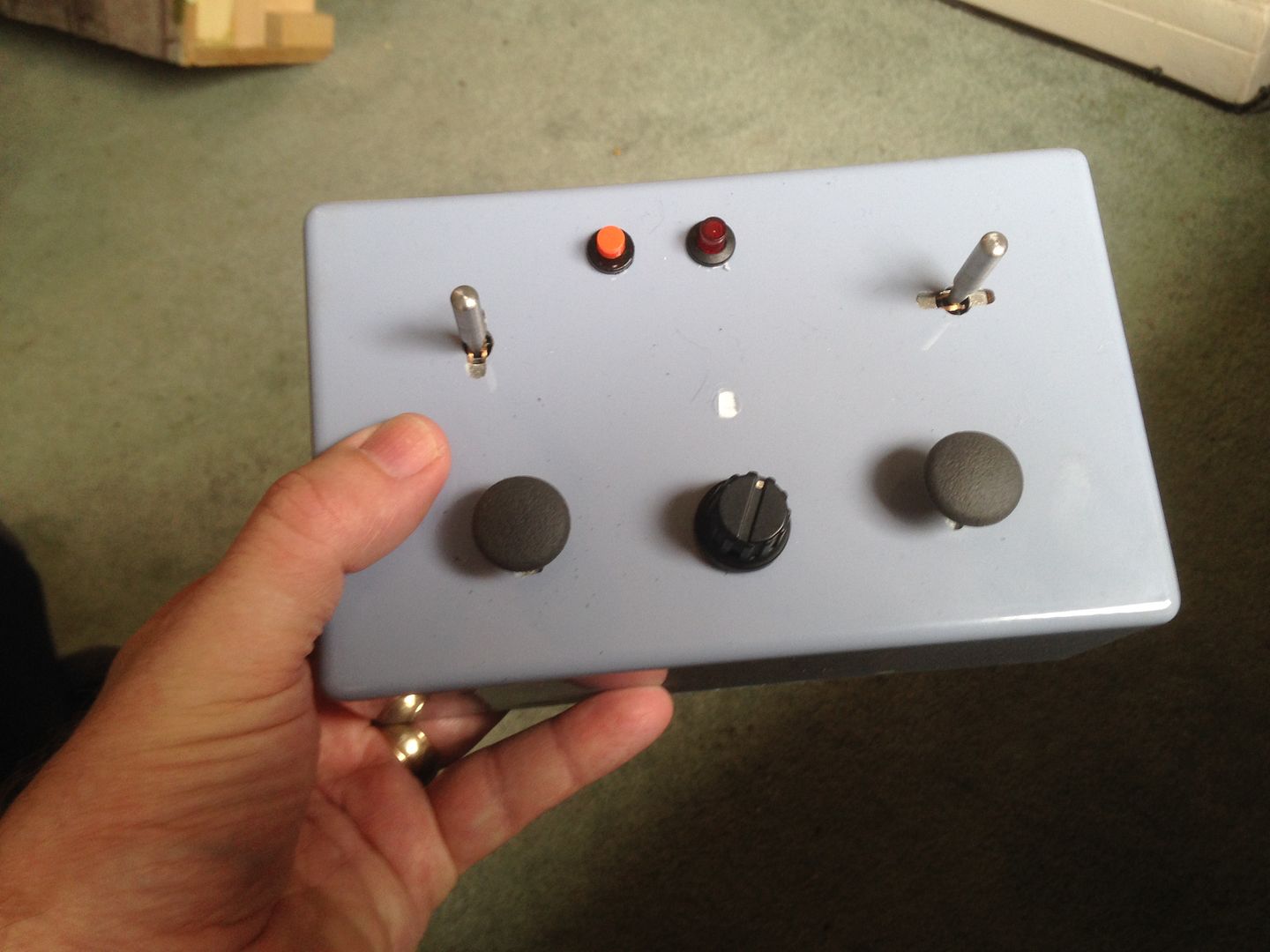

The top two sticks operate the truck, and the bottom two operate the three crane functions, and the knob (lower centre) operates the out-riggers.


Last edited on Mon Mar 20th, 2017 01:19 pm by Giles



____________________
Giles

The Loop. 0-16.5
http://www.youtube.com/watch?v=1FB2lTF4t4M&feature=plcp&context=C3775db8UDOEgsToPDskI_j5g3O_927OWTefW3AUU-
The End of The Line
http://www.youtube.com/watch?v=8SEo2v9v82Q
Back To Top
