Micro Maine - A Exercise in going up a scale and trying something new
 Moderated by: Reg H Page:    1  2  Next Page Last Page
New Topic Reply Printer Friendly
 Rate Topic
AuthorPost
 Posted: Sun Apr 2nd, 2017 10:14 pm
  PMQuoteReply
1st Post
Jon R
Registered


Joined: Sat Apr 1st, 2017
Location:
Posts: 4
Status:
Offline
Good day from the UK!

About 18 months, I started my first attempt at On30 using a pair of second hand tender engines (a 2-8-0 and a 4-6-0) on a 6ft by 2ft board. Like the current layout, it was based on the Maine two footers although using standard Bachmann stock. It worked well but the curves were too tight (I was using 17.5" radius thoughout!) and being effective a massive shunting layout, it got boring very quickly with my at the time merger stock (only 3 Passenger Cars, 2 18ft Cars and a Sandy River Caboose). Plans grew to assemble a sizeable fleet of stock using both full size cars from the Maine Two Footers and some 18ft cars to make shunting easier. The two tender engines were quickly joined by a pair of Bachmann Forneys which while being correct for Maine, were proving to be a pain in day to day use on the then layout.


^^^The former Layout^^^

17 months later, I'd had enough of the layout sitting there doing nothing. So the layout promptly got scrapped. I hadn't given up on the Maine project however. Having sold off the two tender engines to a friend, I'd since purchased a 3rd Forney to bring the total to 3 (two outside framed and one inside framed) along with some additional Passenger cars and a second hand Caboose all from the same source. Time to give this a second go but while learning from my earlier attempt. Larger radius points were the order of the day and to keep it manageable, a small but longer board was decided on.

The new one being 7ft 8" by 9". To keep the stock focused, I also decided to focus on primarily Sandy River and Rangeley Lakes prototypes although the Motive power fleet will feature prototypes from else where. Conveniently, once lettered, two of my Forneys are close enough to the actual engines on the real SR&RL (Numbers 8 and 9). This smaller board combined with the larger radius curves has finally given me the running I wanted and although its a simple terminus with a small engine depot attached, it works a lot better than the older one! Only thing I don't have the room for is a turntable as per the majority of Maine prototypes but in time I'm sure one will appear. Buildings will be mostly 2D because of the lack of space but will be arranged in such a way to complement the layout.


^^^The current Track Plan^^^


^^^The Layout with track laid and working^^^


^^^The Station area with a Passenger train under 'test'^^^


^^^The Remains of the 3rd Forney. Converted into a 0-4-4RT representing SR&RL Number 17 abet with the wrong wheelbase. Now has the correct bunker fitted.^^^


^^^The Entire Layout after Ballast being applied. I know only the Monson used Rock Ballast in its entirety but its a combination of all the Maine two footers.^^^


^^^Engine Depot area showing 3 of the now 5 strong fleet. When finished, I think this is were most of the 'Works Photograph' style shots will be taken.^^^


^^^The Station area showing the runround track, depot spur and Platform road from the viewing side.^^^

The Motive Power fleet will grow with time although it will be mostly comprised of both Sandy River and Rangeley Lakes 2-4-4T Forneys and Brighton and Harrison 2-4-4T Forneys. That said, I have seen a very convincing modification of the Outside Framed 4-4-0 Tender engine on Facebook into a Maine-esque Tender Engine. Ironically, its the same width, length and height post conversion as Sandy River Number 23 so....... I think I know what my next purchase will be!

The current Motive Power fleet looks like (pending suitable donor models/chassis):-
  • Bridgton and Harrison 2-4-4T Number 6
  • Bridgton and Harrison 2-4-4T Number 7 (once valve gear has been changed)
  • Monson 0-4-4RT Number 3 (3D print on a Bachmann Percy Chassis)
  • Sandy River and Rangeley Lakes 2-4-4T Number 8
  • Sandy River and Rangeley Lakes 2-4-4T Number 9
  • Sandy River and Rangeley Lakes 2-4-4T Number 10 (once the valve gear has been changed)
  • Sandy River and Rangeley Lakes 0-4-4RT Number 17
  • Sandy River and Rangeley Lakes 4-4-0+T Number 25 (Fictional)
Rolling stock consists of 3 Bachmann Passenger Cars, 2 of which have been cut and shut to get the correct lengths required for the 46ft length SR&RL Cars. There might be more depending on how I feel, I'm rather proud of my 2 cut and shuts as they're the first ones I've ever attempted let alone finish to a standard I can put up with.

Freight stock at the moment only consists of 5 items. The 2 Sandy River Cabooses ('551' and '559') along with a single Pulpwood Car and 2 18ft Cars. In time, I want to get another pulpwood car (as long as one comes along at the right price and preferably the right paint scheme) and maybe a few other 18ft cars although my mind isn't made up on them. I know I'm going to start gathering the bits together for a set of prototypical cars most likely from the Mount Blue Model Company range of Sandy River Cars including a few boxcars, some flats and cabooses '553' and '556'. That should give a nice varied fleet to operate the layout with.


^^^The other side of the layout showing the 'Fiddle Yard'. There's room for a average sized train plus Forney in there (2 Passenger Cars or 2 Pulpwood wagons and a Caboose).^^^

Jon



____________________
Current Projects:-
Project Micro Maine - Maine Two Footers in On30
16mm Projects for Bowaters Models - Current SR&RL

For all your etched model railway needs:- http://narrowplanet.co.uk/
For your 16mm needs:- http://www.bowatersmodels.co.uk
Back To Top

 Posted: Sun Apr 2nd, 2017 11:53 pm
  PMQuoteReply
2nd Post
Kitbash0n30
Registered


Joined: Mon Dec 10th, 2012
Location: Boonville, Missouri USA
Posts: 578
Status:
Offline
Cool. Is nice to have a layout which finally meets needs.



____________________
See y'all later, Forrest.
Screw the rivets, I'm building for atmosphere
Back To Top

 Posted: Mon Apr 3rd, 2017 05:36 am
  PMQuoteReply
3rd Post
Si.
Super Moderator


Joined: Thu Feb 23rd, 2012
Location: London
Posts: 3657
Status:
Offline
Hi Jon :wave:


Nice to see you on Freerails !


Good that the layout is getting how you want it.


I do love the Maine 2'ers !


:moose:


Si.



____________________

' Mysterious Moose Mountain ' - 1:35n2 - pt.II
http://www.freerails.com/view_topic.php?id=7318&forum_id=17&page=1

' M:R:W Motor Speedway !!! ' - 1:32 Slotcar Racing Layout
http://www.slotforum.com/forums/index.php?showtopic=59295&st=0&a
Back To Top

 Posted: Mon Apr 3rd, 2017 02:45 pm
  PMQuoteReply
4th Post
Herb Kephart
Super Moderator


Joined: Thu Jul 19th, 2007
Location: Glen Mills, Pennsylvania USA
Posts: 6132
Status:
Offline
I too love the Maine two footers. I just don't care for the Winter snow, the Spring mud and the Summer flies. Autumn is OK, except for all the "leaf peepers". Other than that, I might live there------

Or not.

Too old to move anywhere now.

Herb



____________________
Fix it again, Mr Gates--it still works!"
Back To Top

 Posted: Mon Apr 3rd, 2017 05:26 pm
  PMQuoteReply
5th Post
Lee B
Registered


Joined: Tue Dec 9th, 2014
Location: The Pacific NW, By Way Of The Deep South, USA
Posts: 716
Status:
Offline
Great work on the forneys, and I can’t wait to see this layout evolving. It’s good you finally realized what you need, as that’s ¾ of the problem with a new layout, as most people (myself included) are hard to discover what they really want or need out of a layout. In my case, an operation-fan friend of mine lit several bulbs over my head. We’ve all been brainwashed by the magazines over generations that a layout can’t be all that good unless it occupies an appreciable percentage of a football field. Not so! Some of the best operation sessions I’ve taken part in were on smaller layouts/
Frankly, I enjoy almost ANY narrow-gauge modeling that doesn’t start or stop in Colorado or New Mexico. Don’t get me wrong, I like the railroads out there and have ridden them (in my quest to see EVERY non-park-train narrow gauge railroad in the US, which I’m close to completing), but those lines have been modelled to death and you often can’t discuss NG railroads at all without it quickly devolving to a milepost discussion of the old D&RGW…



____________________
-Lee

http://www.freewebs.com/willysmb44/modeltrains.htm
https://www.flickr.com/photos/53587910@N05/sets/72157668176638961
Back To Top

 Posted: Sun Apr 16th, 2017 02:49 pm
  PMQuoteReply
6th Post
Jon R
Registered


Joined: Sat Apr 1st, 2017
Location:
Posts: 4
Status:
Offline
Thanks for all the comments guys. I'm happy with how its turning out.

Joys of having a load of spare 1.5mm plywood planks lieing around meant I was able to finally construct the platform, coal shelter and engine depot. All have turned out nicely. Just need to work out what I'm going to do repainting and then its grass and backscene time!

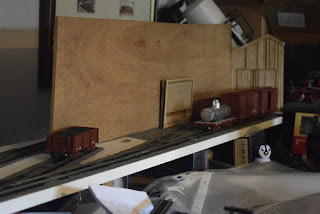

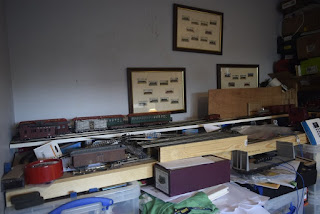

Overall layout with the new sections in place


The platform now covered. You might be able to tell where I gave up cutting the planks......... What can I say, I'm lazy


The coal depot and Engine house. Not exactly following a Maine prototype but I'm working with what I have.

We're getting there. Once the layout's done, it'll be time to start looking at saving up for a massive order from the USA for some rolling stock kits.

Cheers,

Jon



____________________
Current Projects:-
Project Micro Maine - Maine Two Footers in On30
16mm Projects for Bowaters Models - Current SR&RL

For all your etched model railway needs:- http://narrowplanet.co.uk/
For your 16mm needs:- http://www.bowatersmodels.co.uk
Back To Top

 Posted: Sat Aug 12th, 2017 09:18 pm
  PMQuoteReply
7th Post
Jon R
Registered


Joined: Sat Apr 1st, 2017
Location:
Posts: 4
Status:
Offline
After a period of nothing happening, work has slowly restarted on the On30. 3 new locos have been ordered as well as a couple of flat cars. I'm happy with the purchases especially at the prices I paid. I've also started the first stage of a series of projects I really want to do!

Firstly, the new motive power. 2 Modern 4-4-0s have been ordered (1's already here) and another inside Framed Forney. That takes the Forney total to 6 with plans for another 2. The new arrival will take the identity of Sandy River and Rangeley Lakes Number 8. However, this leaves an issue. I already have a Number 8. Not anymore I don't! With a quick headlight change as well as reattaching the steam generator, it's become Bridgton and Saco River Number 6! Why swap them over? Simple. The new engine has Air tanks. The current loco doesn't. A simple headlight and bunker swap will see a modern Sandy River Number 8 compared to the previous early version.


The entire existing Motive Power Fleet with the new 4-4-0.

However, the 4-4-0 won't be staying like it is for long. On Facebook, there is an amazing conversion for the Modern 4-4-0 to give it a Maine Two Foot Outline by cutting down the tender and changing the cab. With a suitable cab on the way (hopefully), I've started work on my own version! Doesn't look like much at the moment but it's a start. Not bad for someone who rarely chops up ready to run!


The overall Loco


The Cutdown Tender. Needs a new rear section on the coal bunker plus tidying up/painting but it's getting there! Maybe needs a tool box as well but I'll have to check the prototypes for that.

Rolling Stock wise, I've had two new flat cars, as well as 4 18ft Cars, arrive which now completes my rolling stock collection. I only ever wanted a small fleet of stock (If I try to have one of everything, it's going to get expensive and I just can't afford it!). In time, maybe I'll get some other items but there are only three items on the list that really appeal. A Bachmann Excursion Car, another Bachmann Pulpwood Wagon and a Mount Blue Models Excursion car.


The layout showing the entire rolling stock fleet.


The 3 Pulpwood/Flat Cars. In time, I want another pulpwood car but it's finding one at the right price!

The 6 18ft Cars. 3 Gondolas, 2 Box Cars and 1 Tank Car.

During a nice long Saturday not having to worry about work, I've also started getting bits for the next big project. Something you don't see very often in On30 is the bigger Sandy River 2-6-2+T tender engines they had. To my knowledge, there's only been one kit (a very good one at that), I think a couple of RTR and that's it. So I'm making my own! I will at this point point out, it's not my original idea. It's an idea myself and Max Brayne have been bouncing between the pair of us and I'm making happen! Using 3D printing as well as a range of other bits I'm planning to make 3 (if the budget allows), Sandy River Numbers 16, 18 and 23. I would do Sandy River Number 24 but that's the obvious choice!

For those who don't know what they look like, here are database entries of all 3 from the internet. Found through google and not my data!:-   As long as they look fairly close, I'll be just fine with that. I've got 3 chassis on order for them based around the Hornby International HL2104 outside framed Diesel chassis (Thanks again to Max for pointing them out!) as well as 6 Forney Pony Trucks to help guide them around the corners. Tenders are undecided, I was going to use Bachmann RTR cut down appropriately but the cost rules that out! If I end up making my own, I'll need to get some suitable bogies although Number 23 already has some ex-coach bogies waiting for it!

Not a bad update really, just need to sort out the new locos when they arrive, paint as required as well as finish work on the first 4-4-0! Plenty to do. Then there's a second 4-4-0 to modify as well......

Cheers,

Jon



____________________
Current Projects:-
Project Micro Maine - Maine Two Footers in On30
16mm Projects for Bowaters Models - Current SR&RL

For all your etched model railway needs:- http://narrowplanet.co.uk/
For your 16mm needs:- http://www.bowatersmodels.co.uk
Back To Top

 Posted: Sun Aug 13th, 2017 01:54 am
  PMQuoteReply
8th Post
Kitbash0n30
Registered


Joined: Mon Dec 10th, 2012
Location: Boonville, Missouri USA
Posts: 578
Status:
Offline
Shaping up to be quite the project.
Would swear I remember reading somewhere in a previous century that one of the Sandy River 2 foot locos was built with a tender which overbalanced on a trestle and wrecked the loco because someone had read tender width on blueprints as (something like) 5ft 6in instead of 56in and tender was built to that too-wide dimension.

Last edited on Sun Aug 13th, 2017 01:55 am by Kitbash0n30



____________________
See y'all later, Forrest.
Screw the rivets, I'm building for atmosphere
Back To Top

 Posted: Sun Aug 13th, 2017 11:26 am
  PMQuoteReply
9th Post
Jon R
Registered


Joined: Sat Apr 1st, 2017
Location:
Posts: 4
Status:
Offline
Thanks for the comment: technically, that is correct but the width was a lot greater than that! It was Sandy River No.24 that suffered that. Her tender was meant to be 84 inches wide but someone messed up somewhere and it was built to 8ft 4 inches wide! Tender over balanced when running backwards taking loco, train and the bridge it was running on down. Safe to say it got rushed into the shops for the extra width to be swiftly taken out. After that, the engine ran very nicely!
I'm sure one day I might make a model of 24 but it's the Obivous choice and I'd rather own a 16mm version than a On30 version!
Cheers,
Jon



____________________
Current Projects:-
Project Micro Maine - Maine Two Footers in On30
16mm Projects for Bowaters Models - Current SR&RL

For all your etched model railway needs:- http://narrowplanet.co.uk/
For your 16mm needs:- http://www.bowatersmodels.co.uk
Back To Top

 Posted: Sun Aug 13th, 2017 02:02 pm
  PMQuoteReply
10th Post
Si.
Super Moderator


Joined: Thu Feb 23rd, 2012
Location: London
Posts: 3657
Status:
Offline
Hi Guys :wave:



WOW ! 7' for the 'correct' spec. is pretty darn wide for a 2' item ...

... esp. a tender.


8' 4" just seems WAY over the limit for top-heavy coal & water. :shocked:


I've been following the 3x the gauge 'rule' for my 2' builds ...

... and limited my widths to a maximum of 6' :P



Nice update Jon. :bg:



:moose:



Si.



____________________

' Mysterious Moose Mountain ' - 1:35n2 - pt.II
http://www.freerails.com/view_topic.php?id=7318&forum_id=17&page=1

' M:R:W Motor Speedway !!! ' - 1:32 Slotcar Racing Layout
http://www.slotforum.com/forums/index.php?showtopic=59295&st=0&a
Back To Top
