Greetings!

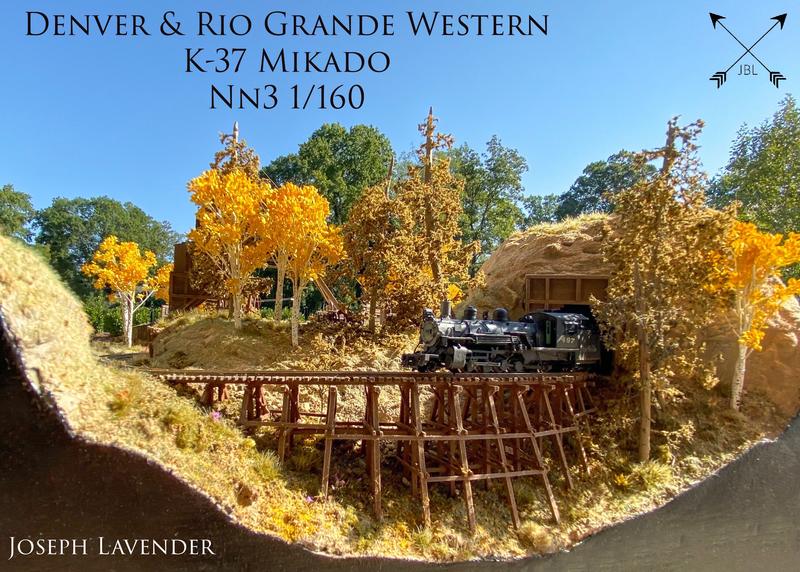

I thought I’d kick things off by sharing my D&RGW layout in Nn3.

Layout is a bit of a stretch as the whole thing measures only 14” x 14”.

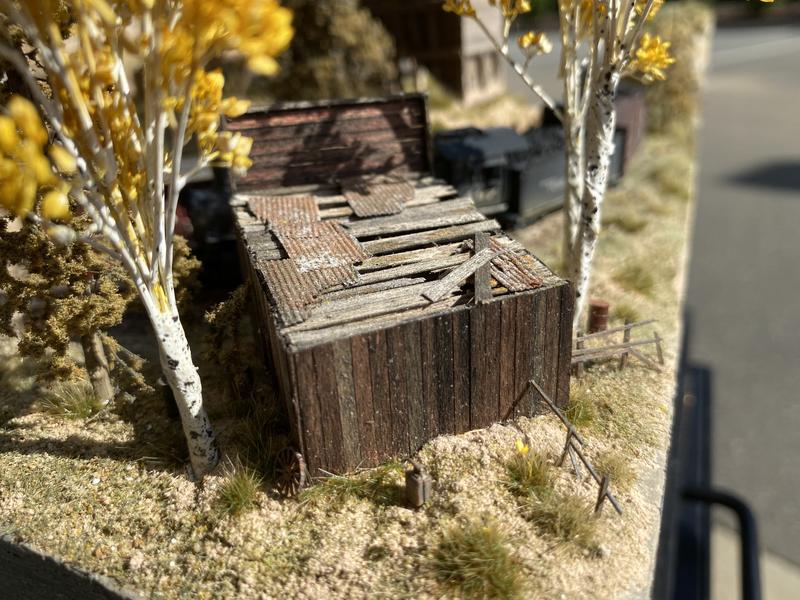

Every structure on the layout is entirely scratch built, board by board,

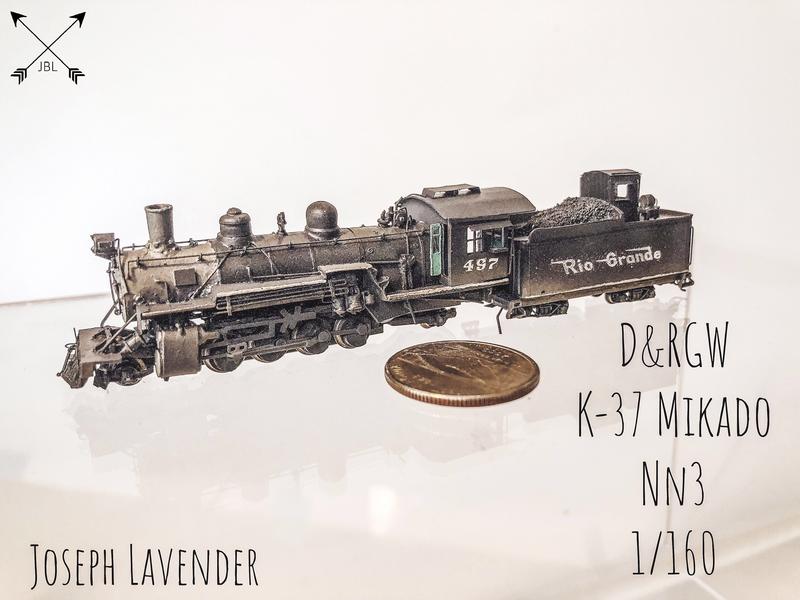

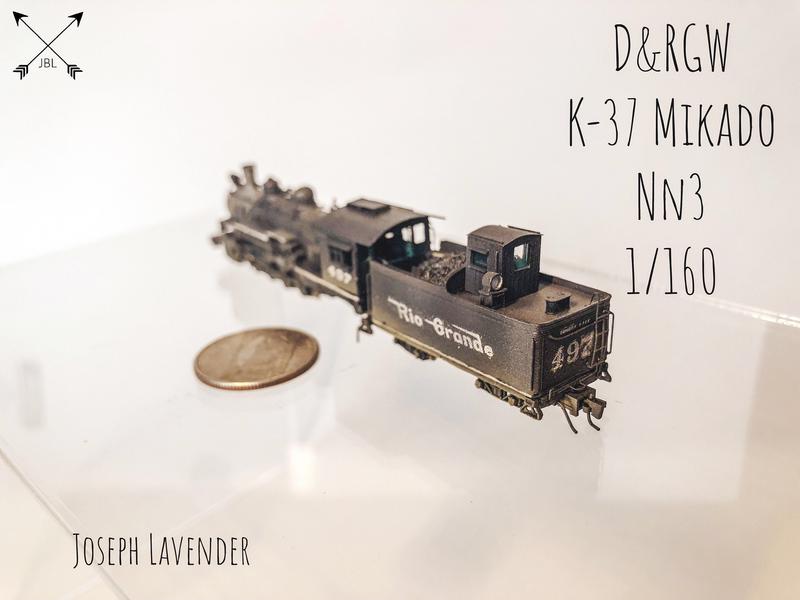

and the locomotive was built by me as well.

I’m primarily a ship modeler, but occasionally I dabble in model railroading.


The story I was trying to tell with this model,
was of a town that serves a mine that went bust many, many years ago.

A few people are still hanging on in the area working the mine tailings to scratch out a living.
The station is still open, for now anyway, but it doesn’t have much time left.


I wanted sound, and since no good DC sound system exists, I built a 6 volt system myself.



































Joe


Back To Top

 Posted: Wed Nov 27th, 2019 07:17 am
  PMQuoteReply
2nd Post
Sean W.
Registered


Joined: Wed Jul 5th, 2006
Location: Pasadena , California USA
Posts: 83
Status:
Offline
Incredible!  Unbelievable.

Thank you for sharing!

More please!





____________________
Sean
Back To Top

 Posted: Wed Nov 27th, 2019 01:46 pm
  PMQuoteReply
3rd Post
Thayer
Registered


Joined: Sat Jul 5th, 2014
Location:
Posts: 105
Status:
Offline
Joseph,

This is remarkable indeed.

A ship modeler, you say?
Can you point us toward some of those efforts as well?

Thanks,

Thayer


Back To Top

 Posted: Wed Nov 27th, 2019 02:38 pm
  PMQuoteReply
4th Post
Joseph Lavender
Registered


Joined: Tue Nov 26th, 2019
Location: USA
Posts: 6
Status:
Offline
Thanks everyone!


The ship models can be seen here on my portfolio website at

http://www.josephlavender.com

The ships are extremely small, but just as detailed as a larger model.
Everything is built from scratch using original plans.  No 3D-printing or kits.
Most of the ships are made from boxwood and brass.


Since the Nn3 project is all wrapped up,
I’ve started another small layout, depicting the hairpin curve and the mines,
served by the Silver City, Pinos Altos, and Mogollon Railroad in New Mexico.

I have a summer home just north of that area near the Acoma and Malpais area.
Since I like small, I’ve settled on Zn2 as the scale and gauge.

It sounds ridiculous, but my model of Shay #2 is nearly finished.
She took a run on the test track this week,
and I look forward to sharing once she’s out of the paint booth.


Back To Top

 Posted: Wed Nov 27th, 2019 03:08 pm
  PMQuoteReply
5th Post
Thayer
Registered


Joined: Sat Jul 5th, 2014
Location:
Posts: 105
Status:
Offline
Zn2?
I'll bet machining those bevel gears was a challenge!

Thanks for the link.
I can see some more enjoyable viewing ahead.

Thayer


Back To Top

 Posted: Wed Nov 27th, 2019 03:42 pm
  PMQuoteReply
6th Post
Ken C
Registered


Joined: Tue Jun 16th, 2015
Location:  Calgary, Alberta Canada
Posts: 773
Status:
Offline
Joe

Fantastic modelling, considering the scale's you are working in,
I have enough trouble building in 1/48th scale.

Looking forward to more of your work.




____________________
Ken Clark
GWN
real men don't use instructions. they are only
the manufacturers opinion on how to put the thing together!
Back To Top

 Posted: Wed Nov 27th, 2019 04:55 pm
  PMQuoteReply
7th Post
Lee B
Registered


Joined: Tue Dec 9th, 2014
Location: The Pacific NW, By Way Of The Deep South, USA
Posts: 1070
Status:
Offline
Wow. Just... WOW.
Amazing work!



____________________
-Lee

http://www.freewebs.com/willysmb44/modeltrains.htm
https://www.flickr.com/photos/53587910@N05/sets/72157668176638961
Back To Top

 Posted: Wed Nov 27th, 2019 04:59 pm
  PMQuoteReply
8th Post
Joseph Lavender
Registered


Joined: Tue Nov 26th, 2019
Location: USA
Posts: 6
Status:
Offline
Thanks guys !!

Shipbuilding is my passion, I like to test the limits of what’s possible in these extremely small scales.

Joe

Back To Top

 Posted: Wed Nov 27th, 2019 05:21 pm
  PMQuoteReply
9th Post
slateworks
Registered


Joined: Wed Oct 6th, 2010
Location: Twickenham, United Kingdom
Posts: 1071
Status:
Online
Hats off Joe, this is exceptional work.

The ships are amazing but for me the K-37 is beyond that.

As Ken says, I too find it difficult enough to build in 1/48 scale,
and that includes using a ready to run HO/OO scale chassis.

A run down on how you built the K-37 would be fascinating.




____________________

Doug

Updah Creek http://www.freerails.com/view_topic.php?id=7457&forum_id=4&page=1
My Flickr albums https://www.flickr.com/photos/33431492@N04/albums
Back To Top

 Posted: Wed Nov 27th, 2019 06:00 pm
  PMQuoteReply
10th Post
W C Greene
Moderator


Joined: Fri May 4th, 2007
Location: Royse City, Texas USA
Posts: 8253
Status:
Offline
Howdy Joe, incredible work!

Nn3 outside frame 2-8-2 is no mean feat, and it gets better...
My favorite narrow gauge, SCPA&M in Nn2!!!
I can't wait to see photos of that.

It's enough for me to build that in 1:35n2...Nn2?
I have seen "fine scale" large scale layouts,
without the detailing you have on your little Nn3 layout.

More, more, MORE!

Woodie




____________________
It doesn't matter if you win or lose, its' how you rig the game.
